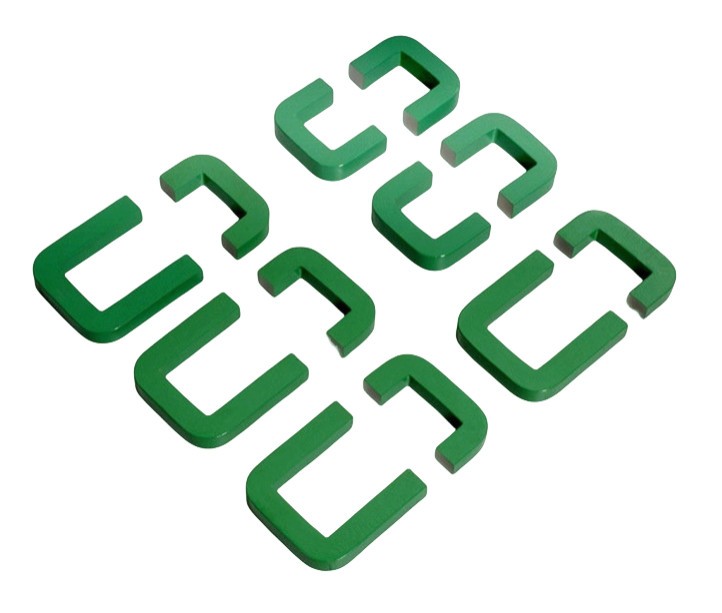

Slicon steel C core

Materials

0.05mm，0.08mm，0.10mm、0.23mm、0.27mm、0.30mm、0.35mm

Low core loss high permeability CRGO siicon sleel with thickness of0.1mm,0.23mm, 0.27mm,0.30mm and 0.35mm

Characeristic

High-precision aulomalic winder roll-formed by high -precision vacuum heat frealment s le reolypes can beasymmetrical cut, he sha pe can show l, Uu, the siructure of the two halkes of a split open a dosed magnelic circuilso the coil and the iron core may be produced separalely, you can shorlen the produclion period.

Applicafion

* Widely used in elec lronic equipment frans formers, rans lo rmers, reaclors, chokes and o ther eleclromagnelic componenls.

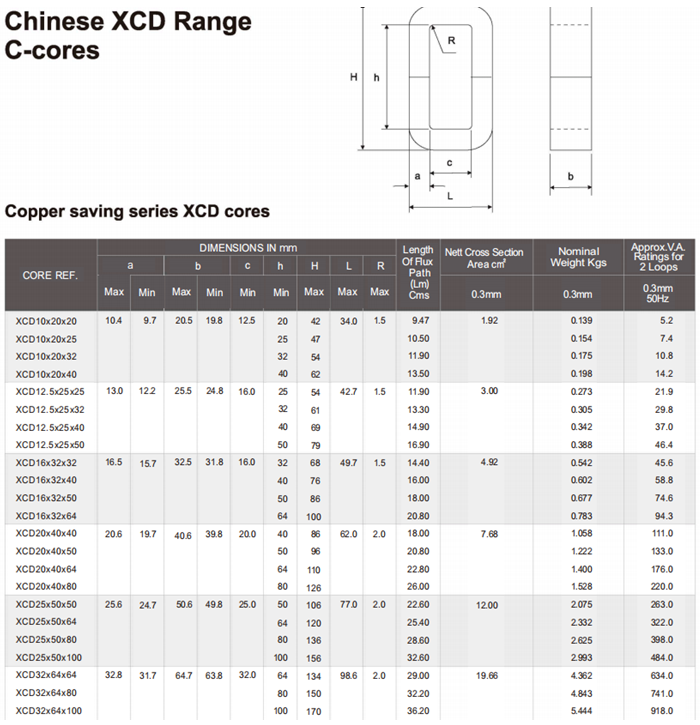

Core shapes     Troidal core / C Core / Customizable

Core Finish       Coating / Casing / Customizing

***CUSTOM DESIGN FORINDIVIDUAL NEEDS***
